MOBILE PHONE SIGNAL BOOSTER KIT (3G/4G)

FREE SHIPPING AND CASH ON DELIVERY PHILIPPINES

NO MORE DEADSPOTS INSIDE YOUR HOME OR OFFICE!MOBILE PHONE SIGNAL BOOSTER KIT (3G/4G)

Overview:
The repeater works with two antennas (included in the kit). One is the indoor antenna which communicates with your cell phone or laptop data card, and another one is the outdoor antenna which communicates with the cell tower.

When the indoor antenna receives the signal from your cell phone or data card, the booster amplifies the signal and transmits it through the cable to outdoor antenna and then to the cell tower. And the better the outside signal, the more coverage the indoor antenna can create.

Features:

• It is suitable for signal amplification of blind spots in various indoor places such as conference rooms, hotels, floors of large buildings.
• Enlarging the coverage area of the base station signal.
• Improve the coverage of sending and receiving mobile phone signals.
• Reduce the radiation of the mobile phone to the human body.
• Prolong the time and life of cell phone battery.
• The installation is light and handy, and can be flexibly configured according to specific application occasions.
• The product is environmentally friendly, small in size and low in cost.
• With advanced digital filtering technology, out of band rejection is especially good.
• The coverage scheme is economical and reasonable, and the isolation between transmitting and receiving antennas is high.
• The outdoor overflow signal is small and does not disturb base station receiving sensitivity.

Specifications:

• Frequency Range: 824-849MHz (Up Link); 869-894MHz (Down Link)
• Maximum gain: 60db (Up Link); 65db (Down Link)
• Standard Output Power:26dbm, 29dbm (Up Link); 25dbm, 27dbm (Down Link)
• Standard Input Power: 32dbm, 27dbn (Up Link); 38dbm, 37dbn (Down Link)
• Noise Figure : 5db
• Repeater Coverage: 50 to 800 M2
• Return Loss : 18db
• Input Power: AC 140V - 265V, 50/60Hz
• Stray Radiation : 36dbm

Package included:

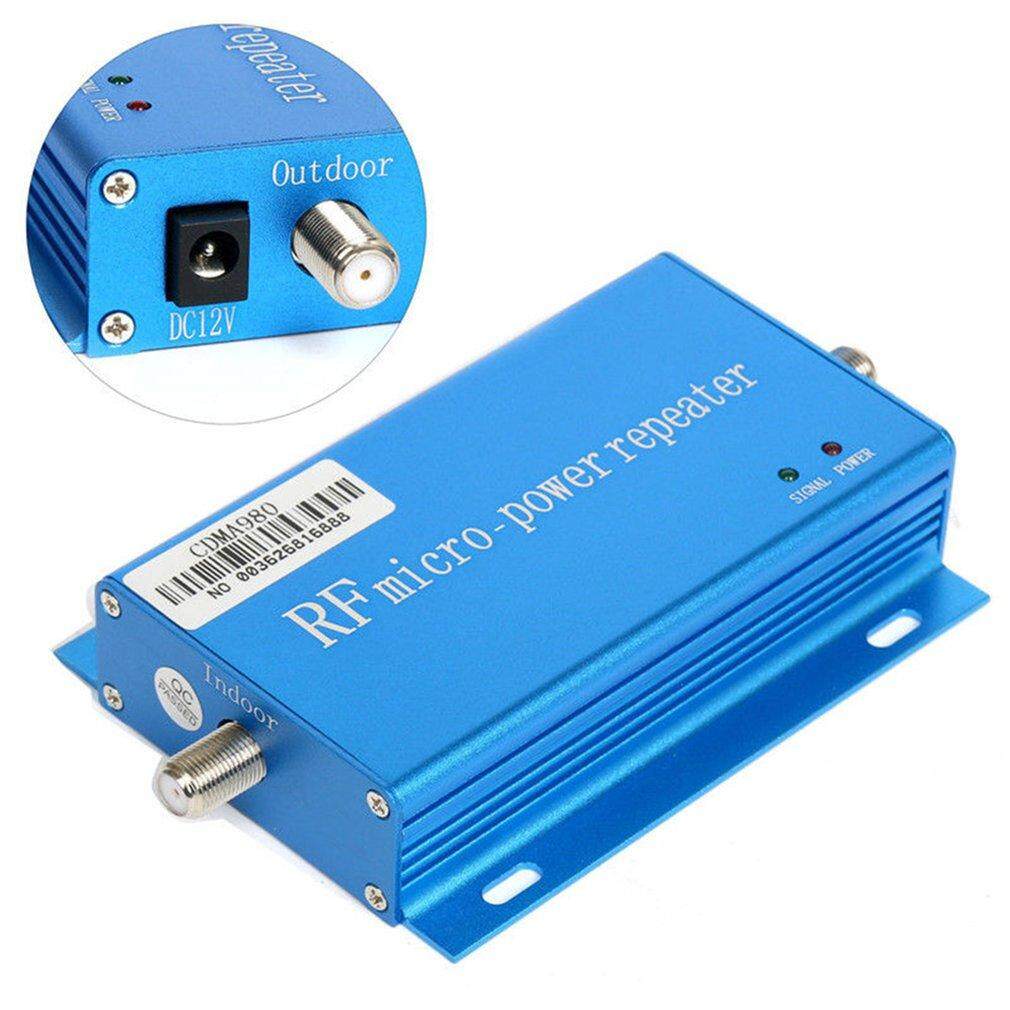

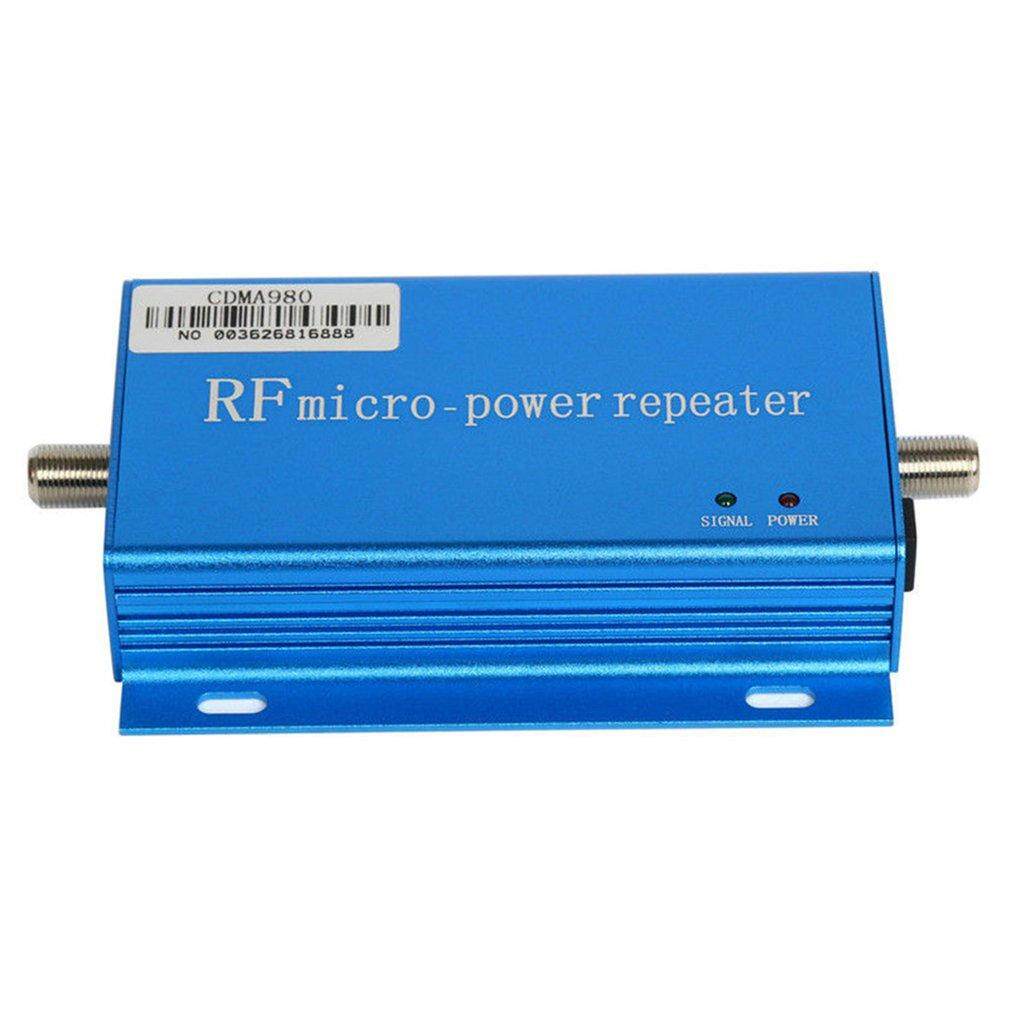

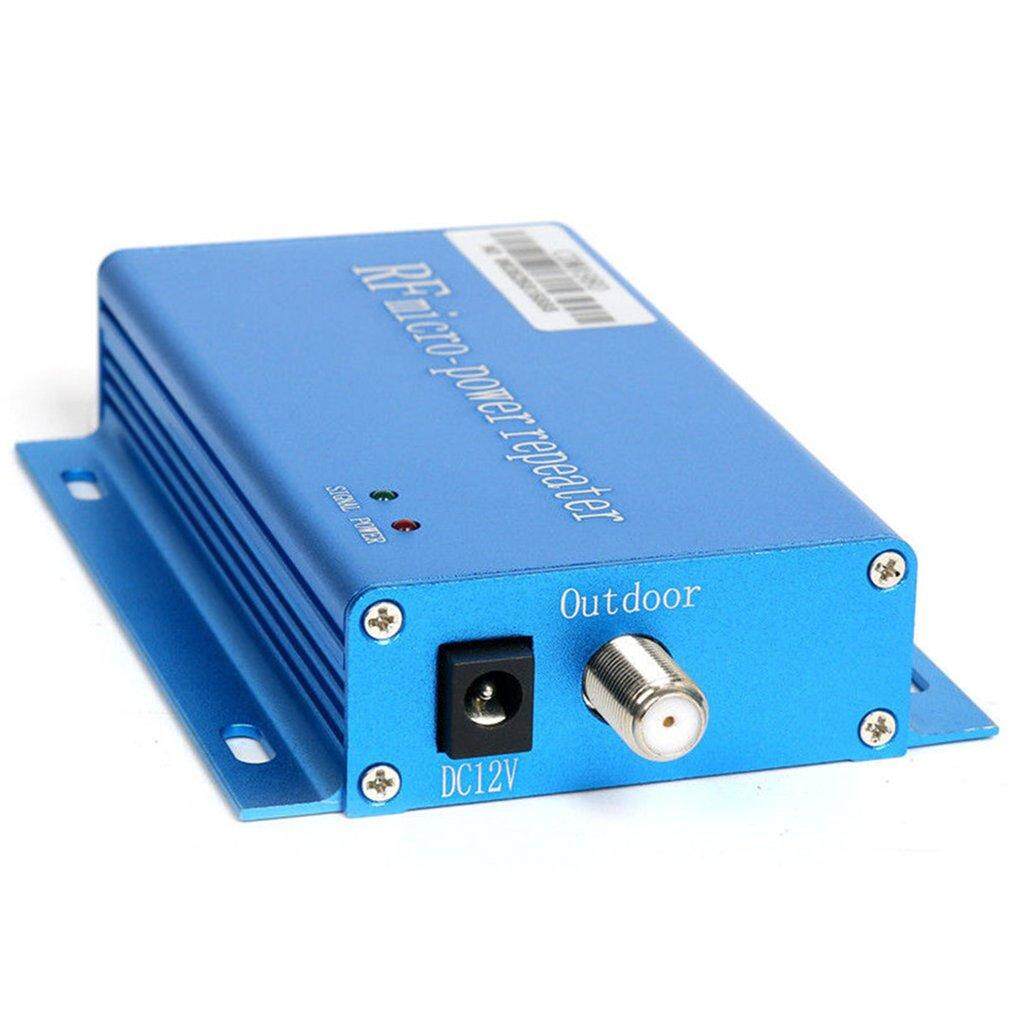

1 x Signal Repeater

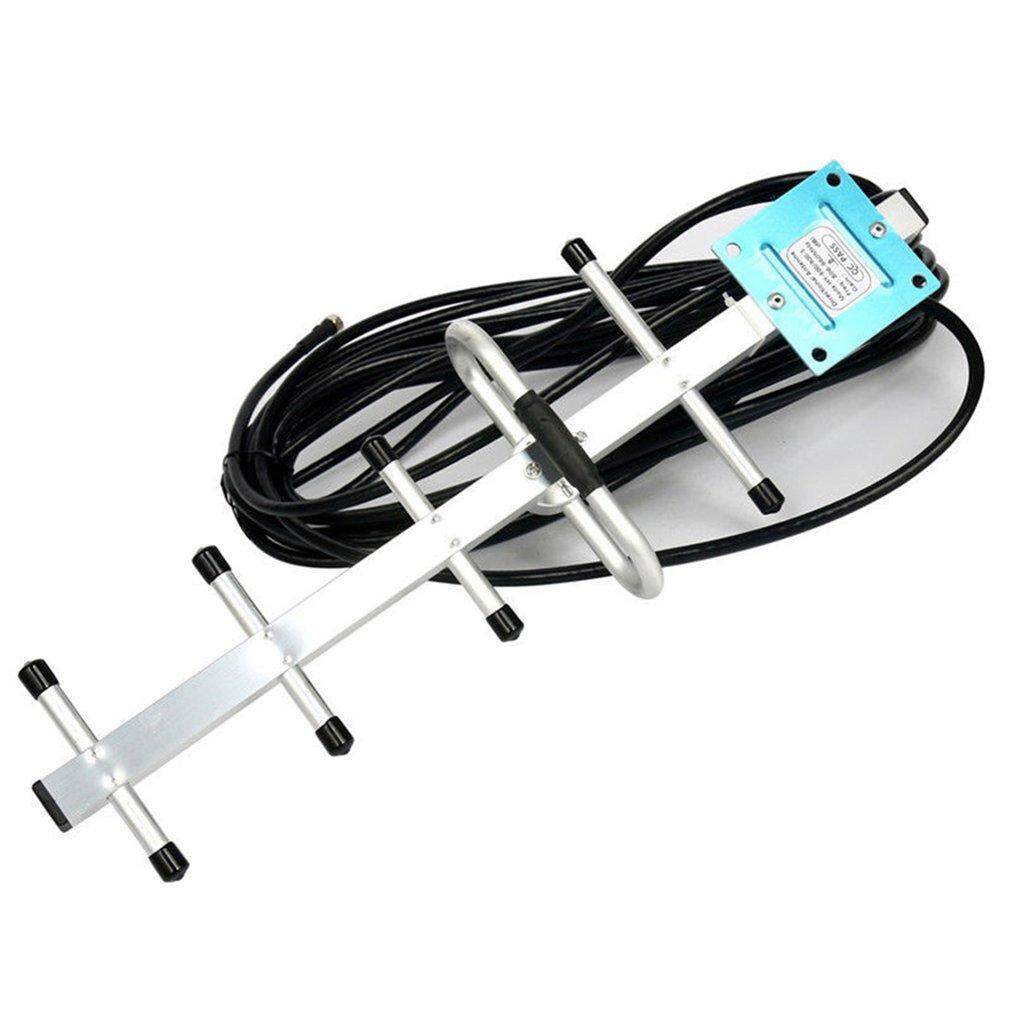

1 x Outdoor Aerial

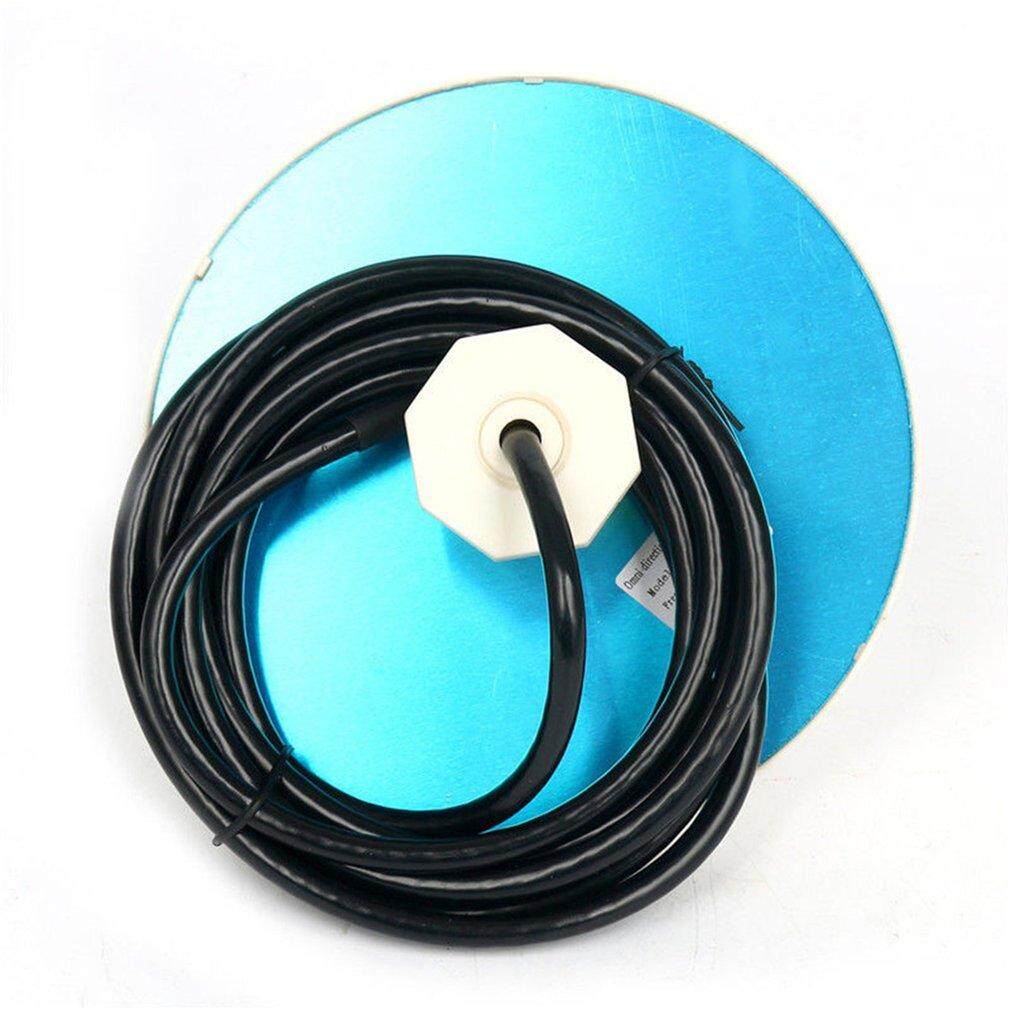

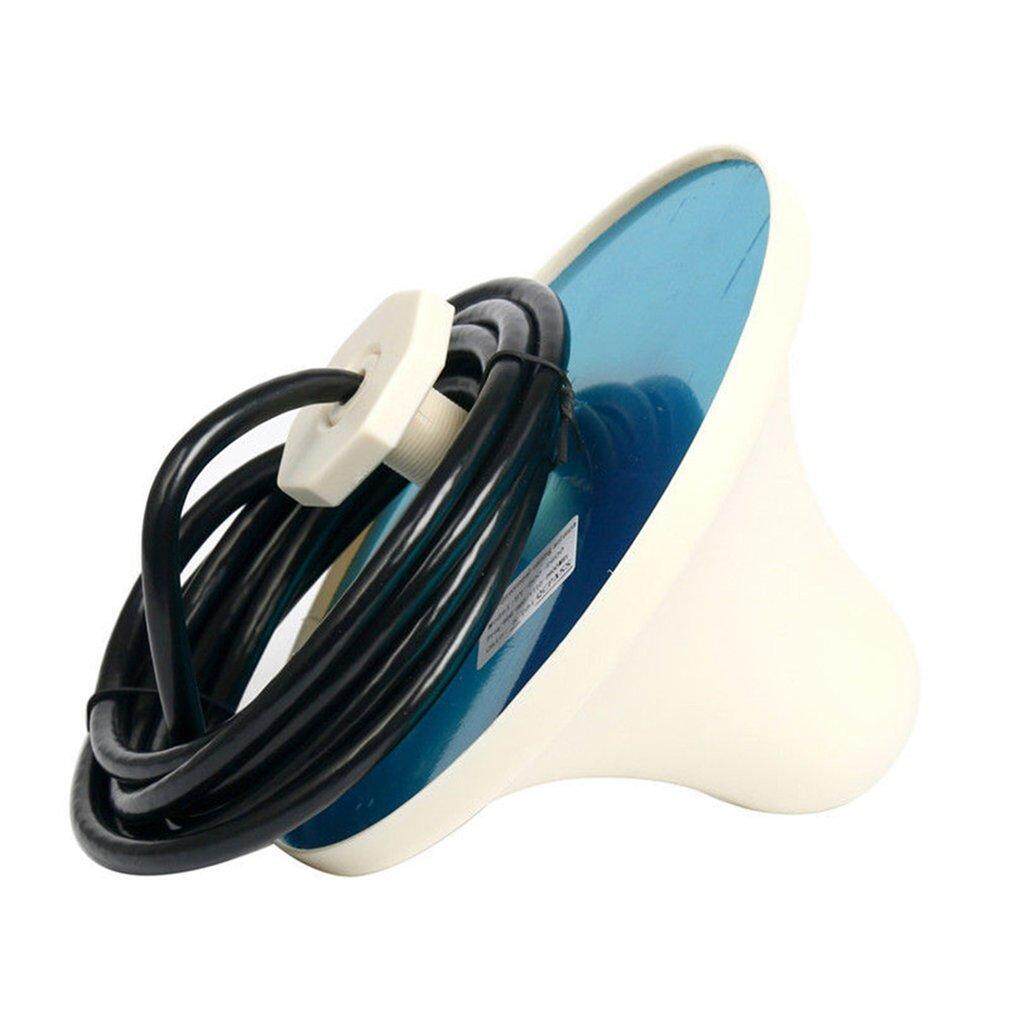

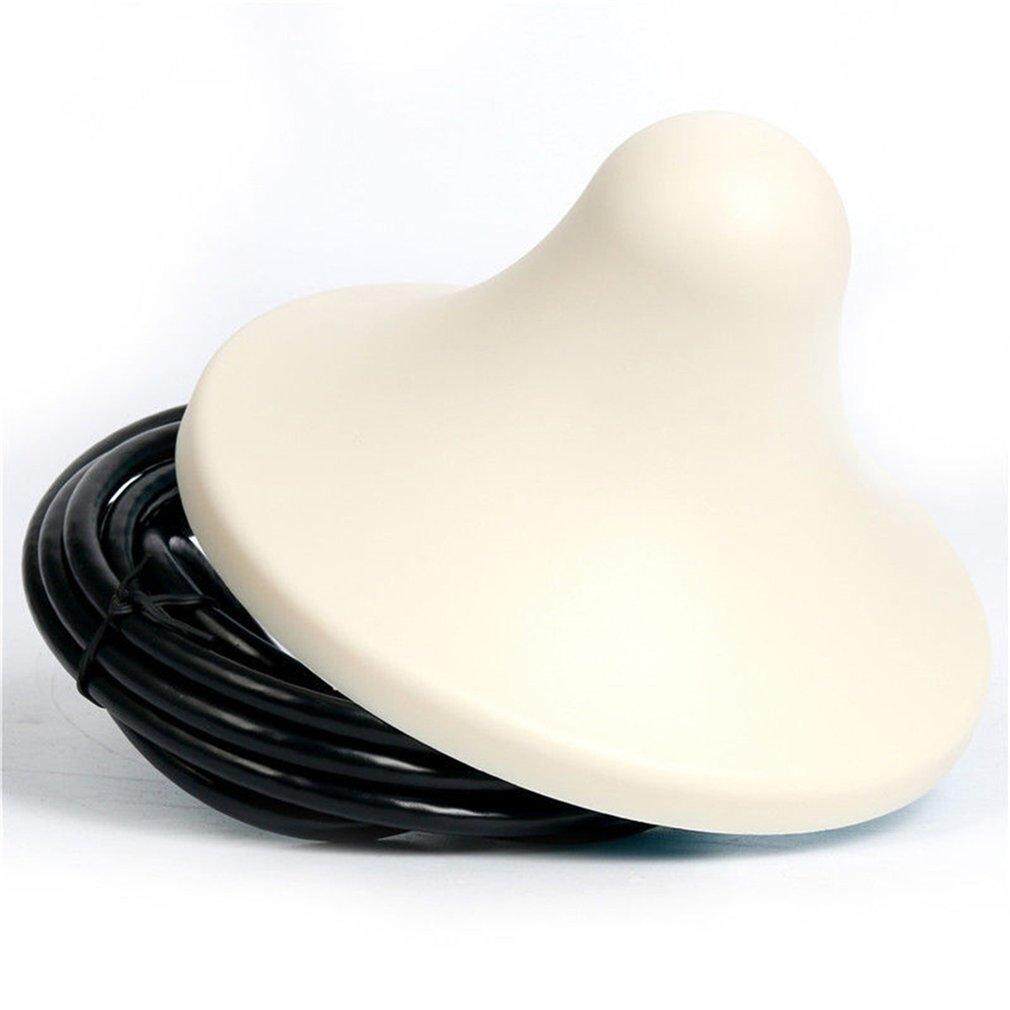

1 x Indoor Aerial
1 x Power Adapter
1 x User manual
